Paddy Cleaner Machine

Paddy Cleaner Machine

Paddy Cleaning is the first step during the rice milling production. A set of paddy cleaner machines can precisely remove impurities from the surface of rice. Incomplete impurity removal will accelerate the wear and tear on subsequent equipment, such as rice hullers and whitener machines. More importantly, it also affects the purity and high-quality rice yield. ANON offers a series of rice cleaner machines with high efficiency and high accuracy. We have models for home-based processing and large-scale industrial rice milling production.

Advantages of ANON Paddy Cleaner Machine

High Cleaning Efficiency

ANON manufactures high-efficiency paddy cleaner machines specifically designed for cleaning rice paddy directly collected from harvesters. Freshly harvested paddy often contains mixed impurities that vary in size, weight, and shape. Therefore, a series of cleaning machines has been carefully developed to effectively separate only clean paddy.

The machines utilize a planar rotary motion to increase the contact area between the paddy and the screening surface, improving separation efficiency. Vertical vibration is also employed to enhance screening effectiveness and accelerate the removal of fine impurities. Moreover, adjustable machine inclination angles are designed to control the material retention time on the sieve, ensuring optimal screening performance under different working conditions.

That is why our rice cleaning machines are very good at removing almost all types of impurities. This includes large impurities such as straw, sticks, jute fibers, weeds, and stones. Smaller impurities such as dust, chaff, sand, and broken grains can also be thoroughly removed.

Low Grain Loss

Our well-designed paddy cleaner machines ensure maximum paddy retention. Because retaining high-quality grains as much as possible is directly affects the rice yields and the profitability.

We use multiple-layer sieves with different mesh sizes, precisely engineered to prevent valuable grains from being mistakenly discharged. In addition, the level of the airflow system is adjustable to adapt to your milling conditions. This ensures that only light impurities are removed while preventing good paddy from being sucked away. Also, we precisely adjusted the vibration frequency and the amplitude to prevent excessive grain movement and loss. Lastly, sealed discharge and recovery channels are available to minimize accidental grain leakage during the process.

Excellent Separation Accuracy

Rice types may vary in size and weight, and one machine setting cannot fit every milling requirement. So, our rice cleaners are designed to be adjustable to suit various conditions. We also optimize the mechanical design. This allows the ANON paddy cleaner machine to achieve 98.5-99% cleaning efficiency

Oversized and undersized impurities are separated during the screening process, light impurities attached to the paddy are removed by the aspiration system, and heavy impurities are separated by the density-based separation design.

The multi-layer screening system with precisely designed mesh sizes effectively separates large and small impurities. The aspiration system and brush components are used to remove any light impurities attached to the paddy. Lastly, we adopt a density-based separation design to remove heavy impurities such as stones and soil lumps. The airflow and mechanical vibration can separate heavier impurities, even when their size is similar the paddy.

Efficient Aspiration System

The aspiration system plays a key role in the cleaning process. If the airflow is too weak, it cannot effectively remove impurities. If the airflow is too strong, it may blow away good grains and cause grain loss.

We use a high-quality centrifugal fan with an optimized impeller design in the paddy cleaner machines. It can generate stable and continuous airflow. We are also equipped with a variable frequency drive (VFD) on the system, which allows the airflow speed to be easily and precisely adjusted according to different working conditions.

With a well-designed airflow regulation system, the machine ensures stable performance and delivers maximum efficiency in your milling plant.

Durable & Robust Construction

Our paddy cleaner machines are designed to operate continuously under heavy usage. This is achieved through a heavy-duty steel frame and corrosion-resistant screens used in the machine structure. The reinforced motion system ensures long service life and stable performance.

Instead of conventional vertical vibrating screens, ANON adopts a planar rotary design. The separation process is based on centrifugal force acting on the paddy combined with planar rotary motion on the screen surface. Since no high-frequency vertical vibration is required, the system offers significantly lower mechanical wear and an extended service life.

This makes our rice cleaning machine highly suitable for continuous industrial rice milling operations.

Easy Maintenance & Operation

ANON paddy cleaner machines are built for simple maintenance and convenient operation. They help reduce downtime and labor costs, as key wear parts can be quickly and easily replaced when needed. The screen system features a drawer-type structure, allowing operators to remove and replace sieves quickly without complicated disassembly. This design significantly reduces downtime during maintenance and cleaning.

In addition, the machine is equipped with visual inspection windows. You can check the internal working conditions in real time. This helps ensure stable operation and enables early detection of any blockage or abnormal conditions.

The machine also includes easily accessible inspection doors, providing convenient access for internal cleaning, adjustment, and maintenance. This user-friendly design improves service efficiency, reduces labor intensity, and makes daily operation much easier.

High Automation Level & Combined Cleaning Machine

We provide dedicated paddy cleaning lines that can be seamlessly integrated with your current rice milling production lines. This system is also equipped with automatic feeding and discharging functions, which do not require manual operation during the working process. We help achieve process integration by providing a continuous flow of material going from the pre-cleaning to the milling process, increasing your production efficiency.

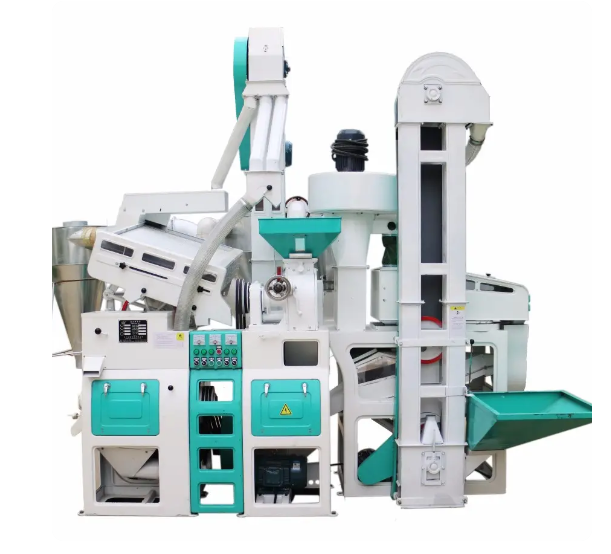

We also provide a compact combined cleaning machine that incorporates both a cylindrical cleaning and a gravity destoner into one unit. The integrated design reduces floor space requirements significantly and is therefore ideal for small-scale rice mills and household-level processing plants. This solution is compact, user-friendly, and well-suited for customers looking for space-saving and cost-effective rice cleaning machines.

Handle Wide Range of Capacities

ANON paddy cleaner machines offer a diverse range of models to adapt varies production needs. From 1 ton capacity to 20 tons over-hourly capacities. At both home-based processing and large-scale industrial premises, we have the perfect machines for you.

Our paddy cleaner machines are designed for continuous operation throughout the day, ensuring sufficient processing capacity even during peak harvesting seasons.

Our Products – Paddy Cleaner Machine

Cylindrical / Drum Sieve: The cylindrical primary cleaning screen is the first choice for the coarse cleaning process. It uses a rotating cylindrical screen where the rice tumbles and advances inside the drum. The inner screen has a large aperture for screening large impurities, while the outer screen has a small aperture for screening fine impurities.

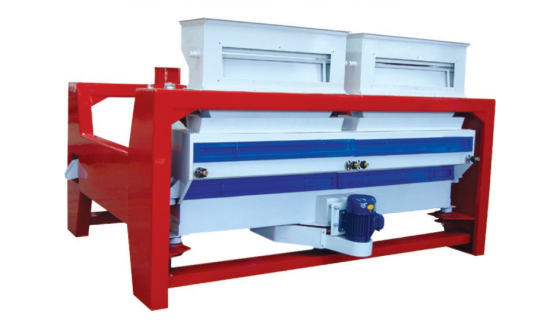

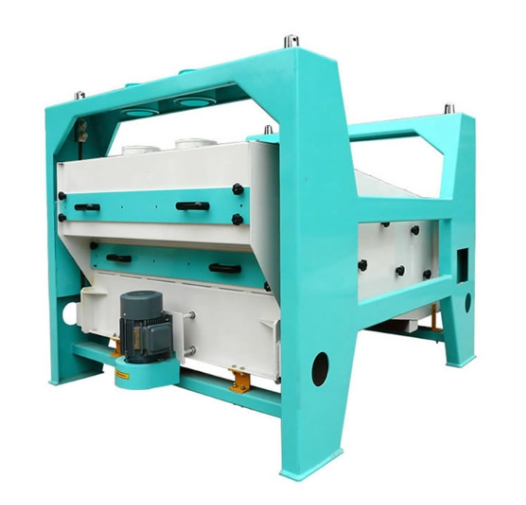

Gyratory Screener: Also called the flat rotary screen, it can be used for more refined processing of fine impurities. After the rice grains enter the screen surface, the screen rotates in a planar motion, further separating larger and smaller impurities through two layers of screens with different apertures, ensuring more thorough grain sieving. A constantly bouncing elastic ball is placed between the two layers of screens to effectively prevent clogging.

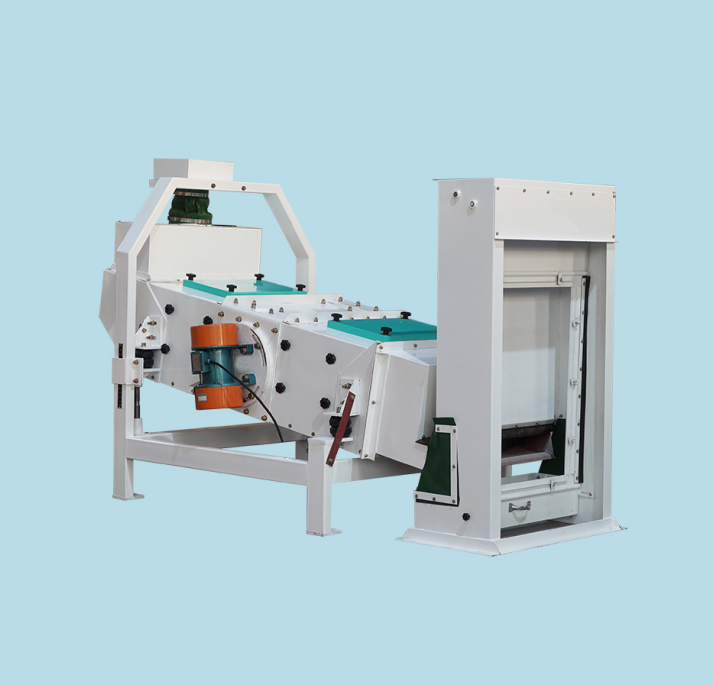

Vibrating Cleaning Screen: The vibrating screen uses high-frequency vibration technology to sieve rice according to different particle sizes, achieving grading and sorting with high impurity removal efficiency. Combined with a negative pressure suction system, it removes fine sand, dust, and other light impurities simultaneously. Through multiple advanced technologies, it provides you with comprehensive cleaning and processing solutions, improving your rice quality and market competitiveness.

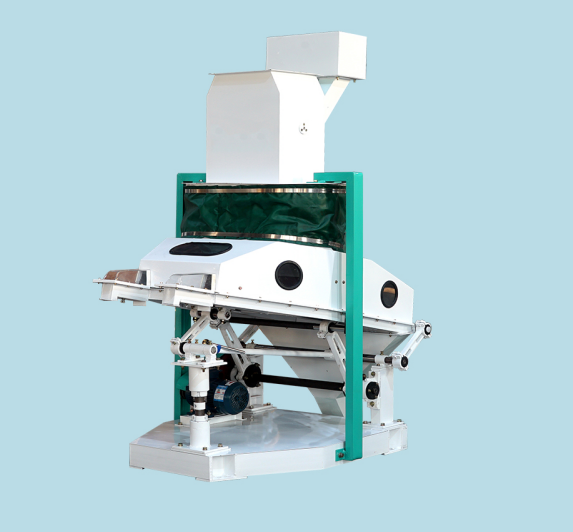

Rice Destoner: Utilizing the specific gravity difference between rice and stones, the inclined screen surface combined with wind adjustment achieves precise separation of stones and sand particles, resulting in a high stone removal rate without damaging rice grains.

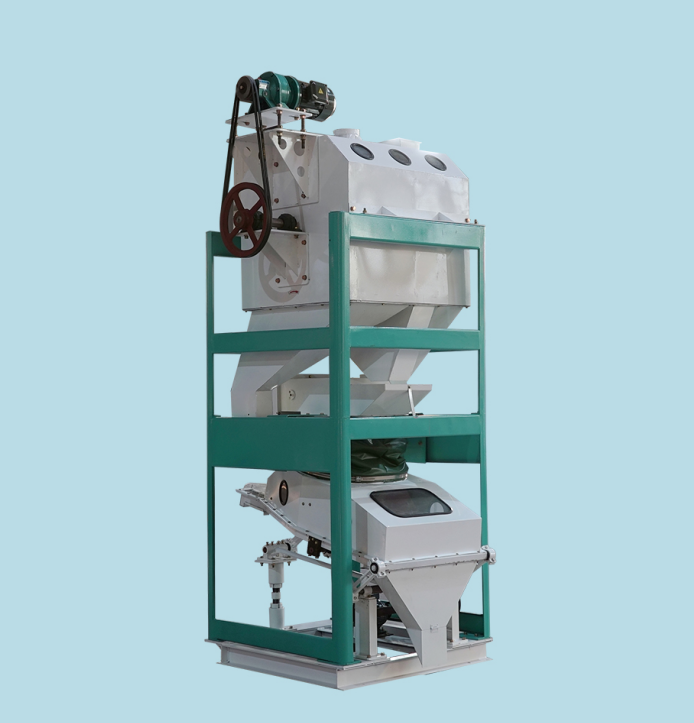

Combined Cleaner: The combined cleaning screen is generally a combination of a cylindrical primary cleaning screen and a destoner, integrating multiple functions into one compact structure with a small footprint, suitable for large-scale production lines.

FAQ

1. Will the rice be broken in the rice cleaner machine?

It is common to find broken rice after going through the rice cleaner machine. But all our machines are designed with gentle movement to minimize breakage. The screen surface moves gently at a reasonable speed, preventing strong impacts or compression of the rice. Under normal use, the broken rice rate is very low, preserving the integrity of the rice as much as possible, reducing raw material waste, and increasing the head rice yield.

2. Which rice cleaner machine is better, a vibrating cleaning screen or a flat rotary screen?

It mainly depends on your needs. If the rice has a lot of impurities and dust, requiring rapid cleaning, then choose a vibrating cleaning screen, as it has high efficiency in removing impurities and dust. If you value the grading accuracy of the rice and want to increase the proportion of whole rice, then choose a flat rotary screen, as it offers more precise grading and smoother operation. Simply put, choose a vibrating screen for efficiency, and a rotary screen for precision.

3. What daily maintenance is required for a paddy cleaner machine?

Simple daily maintenance can ensure long-term stable operation of the machine. You need to regularly clean the screens and air ducts to prevent material blockage; Check the wear of drive belts and bearings often; and store the machine in a dry, well-ventilated place to avoid rust and moisture damage.

4. Will the paddy cleaner machine damage the rice grains during the cleaning process?

No. Our paddy cleaning machine uses gentle airflow and a multi-layer screening design to effectively reduce collisions and friction among the rice grains, resulting in an extremely low breakage rate. It achieves highly efficient cleaning while maintaining the integrity of the rice grains.
