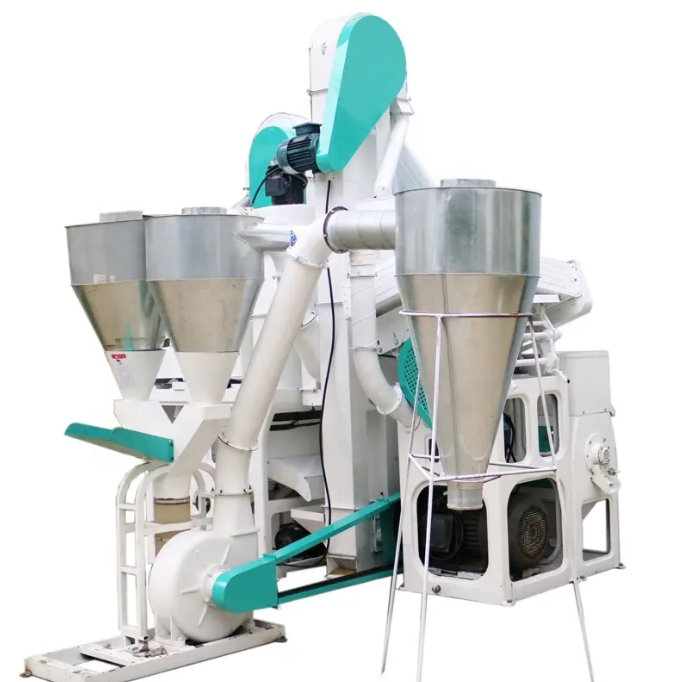

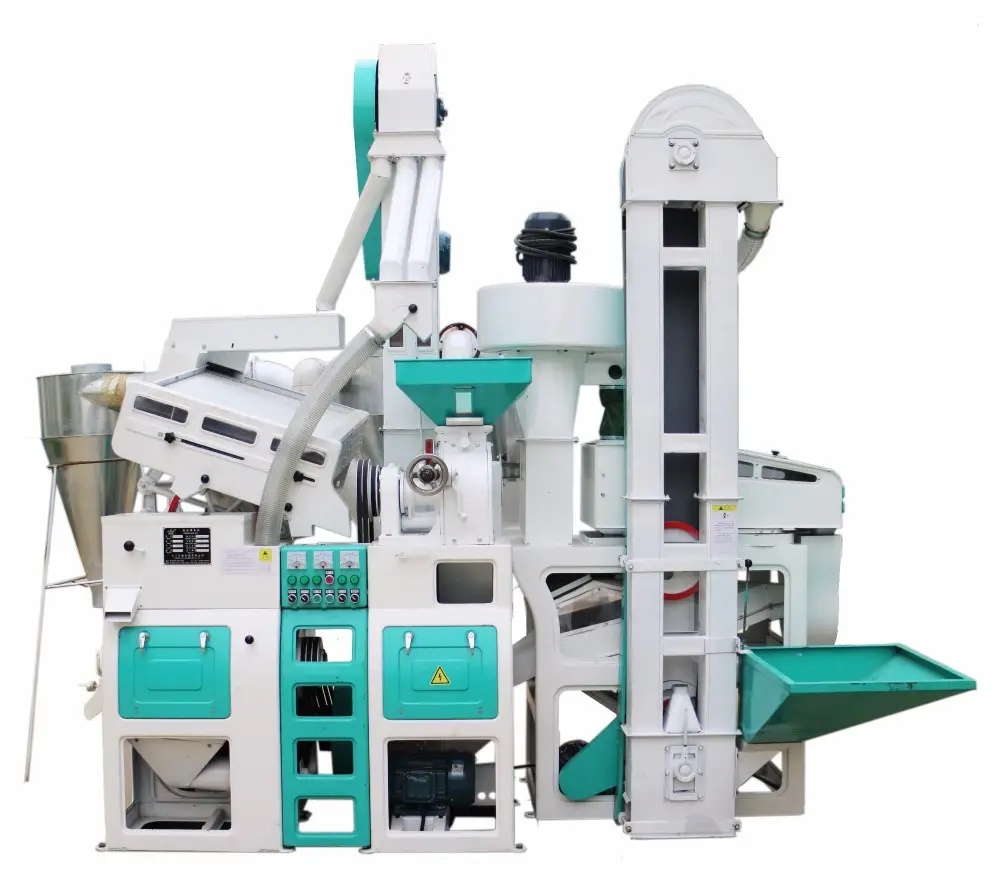

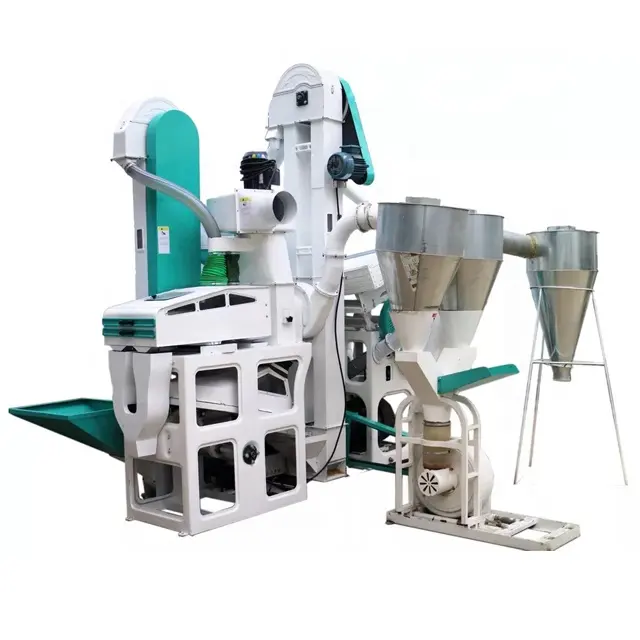

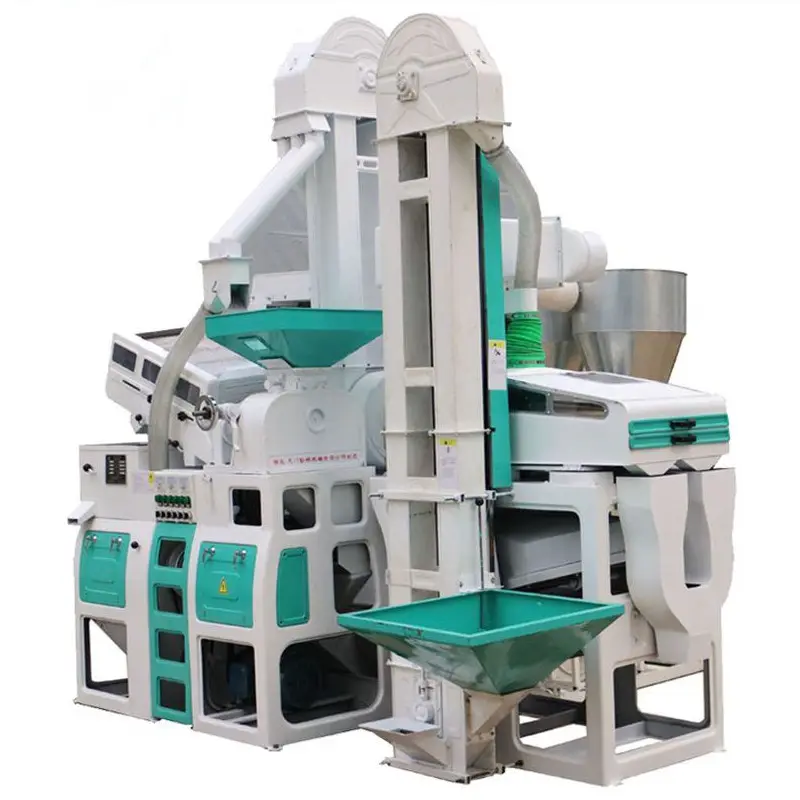

Combined Rice Mill Machine
A combined rice milling machine consists of a cleaning screen, a stone remover, a rice husker, a rice separator, a rice mill, a polisher, a broken rice screen, and an elevator.
1. The cleaning device is used to remove weeds, straw, dust, and other impurities from the rice.
2 . The stone remover is used to separate stones, metals, and other hard objects from the rice.
3 . The rice husker is used to remove the husk of the rice.
4 . The rice mill is responsible for whitening the brown rice, and then it enters the polisher for polishing.
5 . Finally, the white rice is filtered out of the broken rice grains through the broken rice screen, and the whole rice is discharged from the rice outlet and can be bagged for sale.
Our Products
Applications
The combined rice mill is suitable for rural households, small processing plants, agricultural product direct sales bases, agricultural machinery service points, cooperatives, etc. For rural households, the equipment can meet the safety and freshness needs of family rice; in small processing plants, it can undertake OEM or customized grain processing tasks; and agricultural product direct sales bases can use it to process rice on site and increase product added value; agricultural machinery service points and cooperatives can use the equipment to serve surrounding farmers, expand the agricultural value-added chain, and help rural economic development.
Usage suggestions
First of all, before use, you need to thoroughly check the key parts such as the screen, rice milling drum, and transmission belt to ensure that there is no looseness, wear or blockage; ensure that the processed rice is fully dried and keep the moisture content between 13-15% to facilitate husking and rice output; during operation, you need to regularly clean the rice bran discharge channel, exhaust vents and other dust-prone areas to avoid blockages that affect efficiency; after each use, you must also promptly clean the remaining rice husks, rice flour and the surface of the machine body to prevent mildew, rust or wear of parts, and extend the service life of the equipment.
Related Products
FAQ
Multi-pass rice mills are ideal for large-scale production and have capabilities far beyond those of a single-pass rice mill. They perform multiple rice milling steps, including cleaning, hulling, whitening, polishing, and sorting, to produce polished rice.
Daily cleaning: clean the rice sieve and milling chamber after each use to prevent the accumulation of bran powder.
Regular inspection: check the bearing lubrication and belt tension every quarter, and replace the wearing parts every year.
Environmental control: avoid open-air storage, rain and sun protection, and reduce the impact of high temperature and humidity.
One solution is to increase the gap between the rice screen and the grinding stone appropriately to reduce the pressure in the rice milling room, weaken the friction of rice grains, and prevent rice grains from breaking easily.
