ANON 1BJX Medium offset Disc harrow 50-100hp

December 8, 2025

3574 Views

The ANON 1BJX series suspended middle-duty offset disc harrow is primarily used for soil preparation after plowing, seedbed preparation before planting, loosening soil, mixing soil and fertilizer, and stubble removal in light soils.

ANON Middle-duty Offset Disc Harrow

The ANON 1BJX series middle-duty offset disc harrow is a double-row disc harrow that operates off-center from the tractor’s centerline. The front and rear disc gangs have opposing concave directions, and cutting is performed by the rotating disc blades.

Features of the Offset Disc Harrow

This machine features a reasonable structure, is sturdy and durable, easy to use, and easy to maintain. It has strong soil penetration and pulverization capabilities, resulting in a level surface after harrowing.
1. The ANON offset disc harrow can complete multiple processes in one pass, including soil pulverization after plowing, leveling the surface, and covering crop residue. After the operation, the surface is level and ready for direct sowing or transplanting.

2. Heavy-duty discs and a robust structure ensure stable performance in heavy, wet, and residue-laden soils. It is less prone to clogging, highly reliable, and guarantees work progress even under adverse conditions.

3. By adjusting the offset angle and adding or removing counterweights, you can easily switch between different modes, such as shallow harrowing for stubble removal and deep harrowing for soil pulverization, improving the utilization and economic efficiency of the single machine.

4. The ANON offset disc harrow connects to the tractor using a three-point hitch or hydraulic system.

5. This machine has a simple structure and is easy to maintain. Routine maintenance only requires cleaning the machine and lubricating the parts.

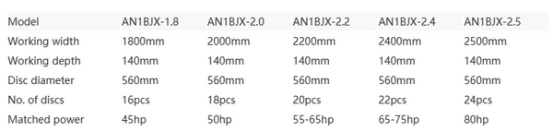

Specification

FAQ

1. What is the maximum width of the narrow space that the machine can access? You can adjust the ANON 1BJX series offset disc harrow to achieve a maximum 3-meter offset, allowing these implements to handle diverse extreme terrains while reducing average turning time by around 50% compared to standard models. Moreover, it can largely avoid damage to crop roots.

2. How much oil does it save compared to a traditional symmetrical rake? The offset disc harrow design can reduce the number of ineffective duplicate jobs by approximately 30%. The fuel consumption per acre of the traditional rake is 0.6-0.8L, and it is about 0.45L.

3. How to adjust tillage under different soil conditions? Depending on the terrain, you can adjust the rake depth, work speed, and increase the seed and rake to adapt to the farming conditions.
