AN4YZ-1

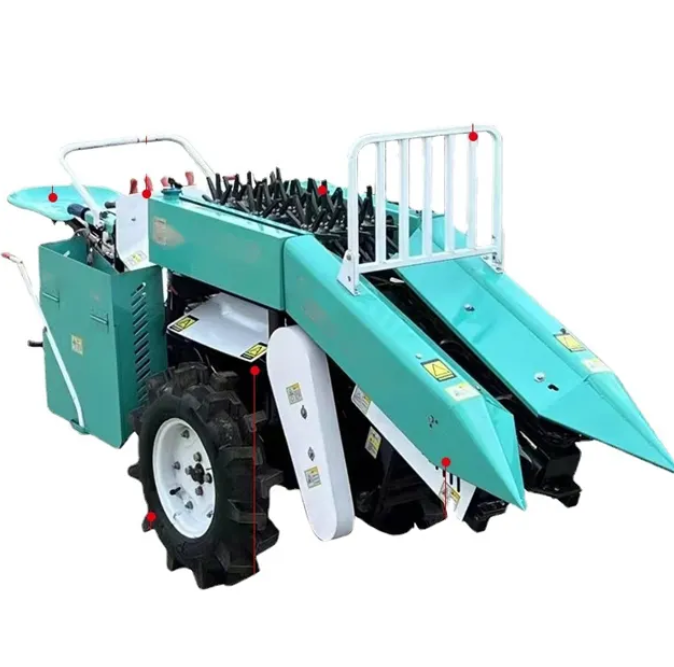

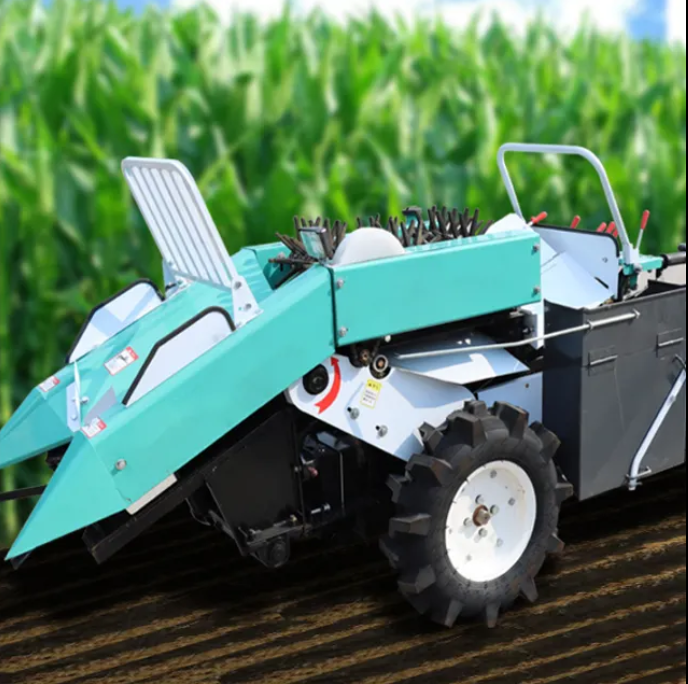

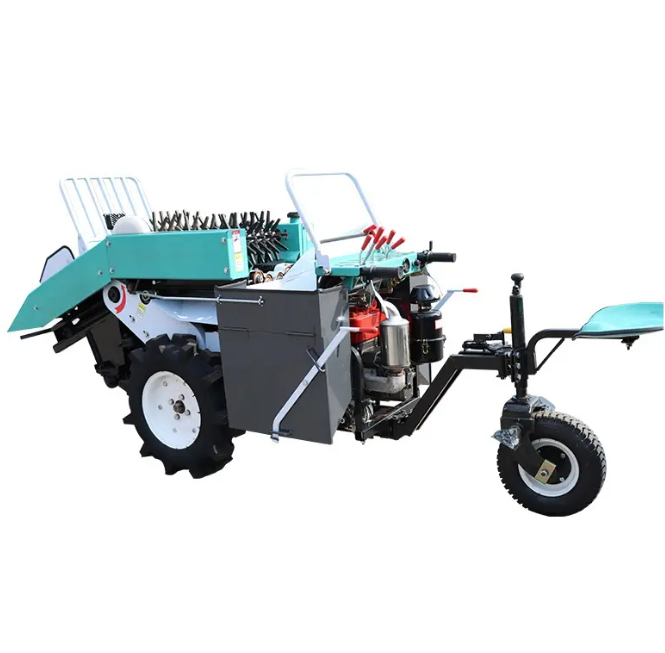

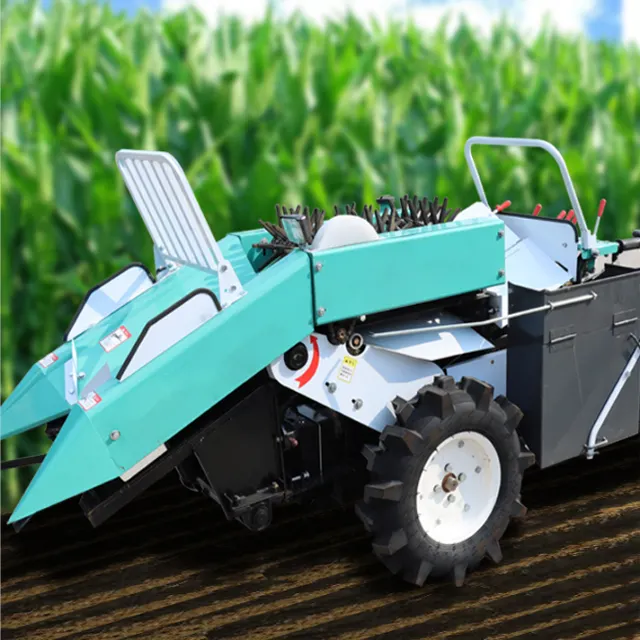

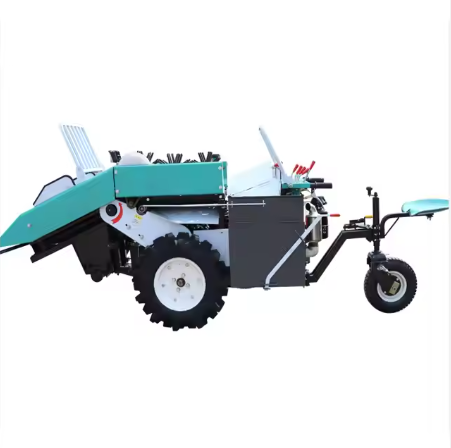

The self-propelled compact corner is an agricultural machine designed for small-scale farmland operations.
It is small in size, lightweight and highly maneuverable, and performs well in hilly areas and irregularly shaped fields where large combine harvesters cannot operate. The harvester integrates the functions of harvesting, shelling, straw crushing, and stubble backfilling, significantly improving agricultural efficiency while reducing labor intensity and operating costs. Its user-friendly design ensures that operators of all ages and skill levels can operate it easily.
Working Principle of the Mini Corn Harvester
During operation, the mini corn harvester moves forward along the corn rows. The crop dividers on both sides of the header separate the corn entering the harvesting area from the rest of the field. Corn stalks entering the harvesting zone are guided by the central divider into the picking channels.
Under the forceful guidance of the gathering chains, the stalks are directed between two snapping rollers in the picking mechanism. The rollers rotate rapidly, pulling the stalks downward. The thicker corn ears are held back by the snapping plates while the stalks are pulled through, achieving separation of ears from stalks.
The snapped ears are then moved by the gathering teeth into the husking machine, which removes the husks before the ears are transported to the grain bin.
After ear removal, the leftover stalks are shredded by the straw chopper and evenly spread back onto the field to improve soil fertility.
Once the grain bin is full, the operator uses the grain unloading lever to release the harvested corn directly onto the ground.
Mini Corn Harvester Features
The AN4YZ-1 is a widely used small-sized corn harvester with mature technology and reliable performance. It can complete the entire harvesting process in one pass—ear picking, husk removal, ear collection and loading, as well as stalk shredding and returning to the field—significantly improving operational efficiency.
This machine is designed with practicality in mind: it is easy to operate, highly maneuverable, and not restricted by row spacing, eliminating the need for manual row opening. It can perform off-row harvesting, making it highly adaptable to different planting patterns.
With low investment and high returns, the AN4YZ-1 offers strong economic value. It can harvest 2–3 mu (about 0.13–0.2 hectares) of corn per hour, making it an affordable and efficient choice for small to medium-sized farms.
| Model | AN4YZ-1 |
| Dimensions(mm) | 3300×850×1400mm |
| Packing size(mm) | 2450×950×1250mm |
| Total mass(kg) | 700kg |
| Minimum ground clearance | 200mm |
| Harvesting row number | 1 row |
| Working width | 500-650cm |
| Engine rated power | 11.76kW (16 horsepower) |
