ANON 1BZ-5.3 folding type heavy-duty disc harrow 80-160hp

ANON 1BZ-5.3 series heavy-duty disc harrow is suitable for breaking soil after tillage, preparing the land before sowing, loose soil, soil and fertilizer mixture, and light soil stubble removal operations. It is large and has 48 rake blades, so it can complete the function of crushing soil, leveling, and suppressing at one time, so it has a great advantage in the efficiency of land farming. In large-scale farms, the 1BZ-5.3 heavy-duty disc harrow can operate synchronously with the seeder to reduce fuel consumption.

Square axis design

The square shaft refers to the square-section spindle used to fix the rake in the disc harrow group. The ANON 1BZ-5.3 heavy-duty disc harrow is made of high-strength alloy steel with a hardness of HRC38-42 and a length of 44mm. It is designed to reduce power loss and does not require regular lubrication, which can effectively improve the service life of the disc harrow. It is suitable for terrain with high resistance, such as clay land and straw-covered land. When the square shaft is driven by a hydraulic motor, it can achieve variable speed soil breaking.



Hydraulic traction

ANON1BZ heavy-duty disc harrow is hydraulically drawn and connected to large tractors. Their power transmission medium is high-pressure hydraulic oil, and large tractors transfer power through the hydraulic system to drive the disk harrow walking and working. Compared with the traditional mechanical transmission, this method cancels the gearbox and drive shaft, and can achieve stepless transmission and effectively improve work efficiency.



RSP all-inclusive bearing

The ANON heavy-duty disc harrow is an RSP all-inclusive bearing, using a two-sided integral sealing structure of the rolling bearing. The design is IP65 compliant and completely insulates the entry of dust or liquids. An RSP all-inclusive bearing can achieve a 300% increase in life in a mud and water environment. At the same time, its sealing structure can increase the axial force by 15%. Compared with ordinary open bearings, it is more durable and of higher quality.



Collapsible rake wing

The 1BZ-5.3 series heavy-duty disc harrow has folding fins, allowing one to fold the left and right sides of the harrow upward. A large, overly wide disk harrow cannot cultivate when its harrow group encounters a narrow space. In this case, one can fold up the harrow group to reduce the width of the disk harrow for easier cultivation.

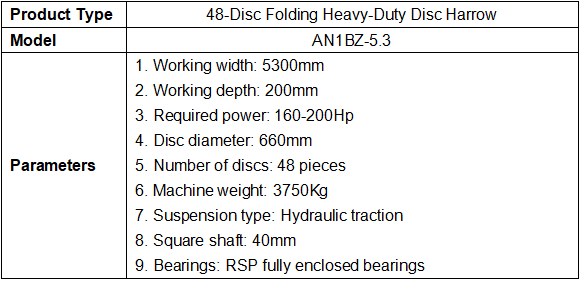

Specification

• Working width: 5300mm
• Working depth: 200mm
• Matched power: 160- 200 HP
• Disc diameter: 660mm
• No. Of discs: 48pcs
• Total mass(kg): 3750Kg



FAQ

1.1BZ-5.3 Series heavy-duty disc harrows with what horsepower tractor pull?

ANON recommends a 180-220 HP tractor. You can also choose according to different types of work. A corn stubble subsoiling requires more than a 200 hp tractor, and needs to configure the front counterweight. To perform the rice stubble shallow harrow effectively, one needs a machine with more than 180 horsepower. If possible, you should install the paddy field wheel to prevent depression.



2. How to deal with the situation of asynchrony when using hydraulic folding?

First, you can disconnect the quick-change joint of the cylinder. Then you manually reset the rake wing to the same level. After you reconnect, you need to repeat the full folding step several more times to test that it works.
