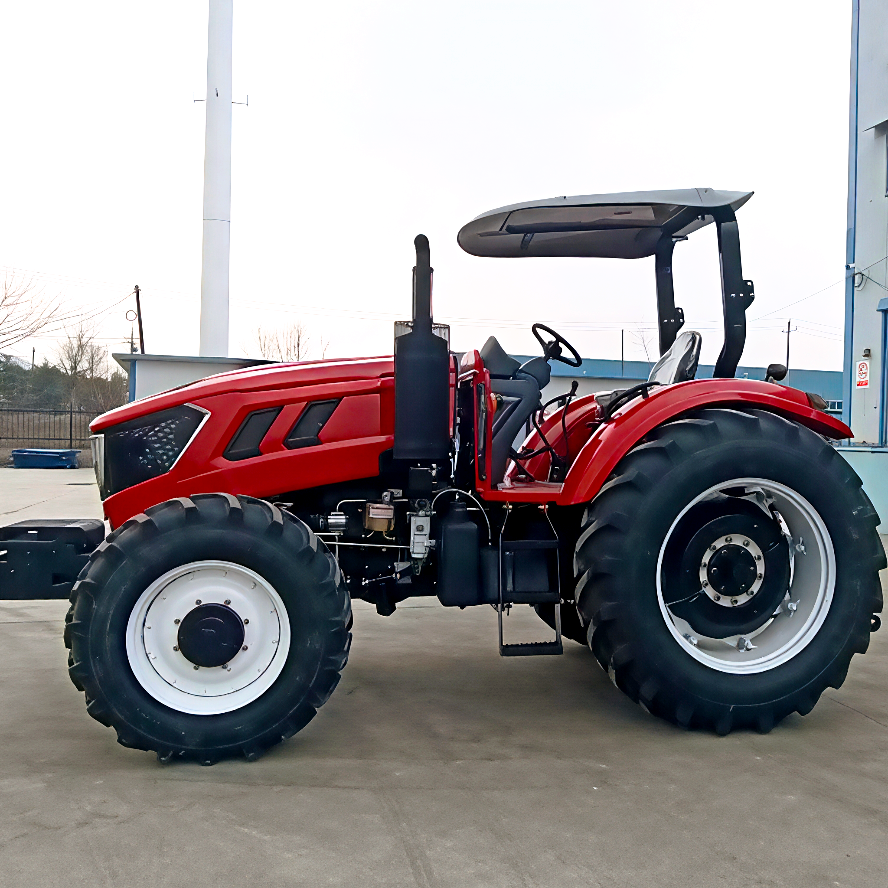

Among the three models of the TF series large tractors, AN1504 is equipped with the best configuration. This 4WD 150 HP tractor AN1504 is for large-scale farmers and higher-end users. Those customers usually require more professional and advanced functions and features instead of economic performance. With a robust 150 HP platform, the 150 HP tractor AN1504 can totally satisfy your demands.
Specification
Features&Advantages
Engine from Famous Brand
The diesel engine is from the world’s top brand, Weichai. And it can ensure the high-quality engine not only, but also their after-sales service.
We also know that the 6-cylinder engines are superior to the 4-cylinder ones. By equipping this powerful engine in the 150 HP tractor AN1504, you can enjoy a powerful engine with smoother operation, less noise, and a better overall driving experience. This engine ensures that this large tractor is very well equipped for heavy-duty jobs.
Outstanding Work Capacity
Customers who are looking for 150 HP tractors must take note of the work capacity. ANON can show the excellent capacities of the 150 HP tractor AN1504 in the following aspects.
Powerful hydraulic capacity
The lifting force of this 150 HP tractor AN1504 far exceeds that of similar models. It can easily control and manage very heavy agricultural implements, ensuring the rapid entry and lifting of heavy agricultural implements, which is the basis for efficient operation.

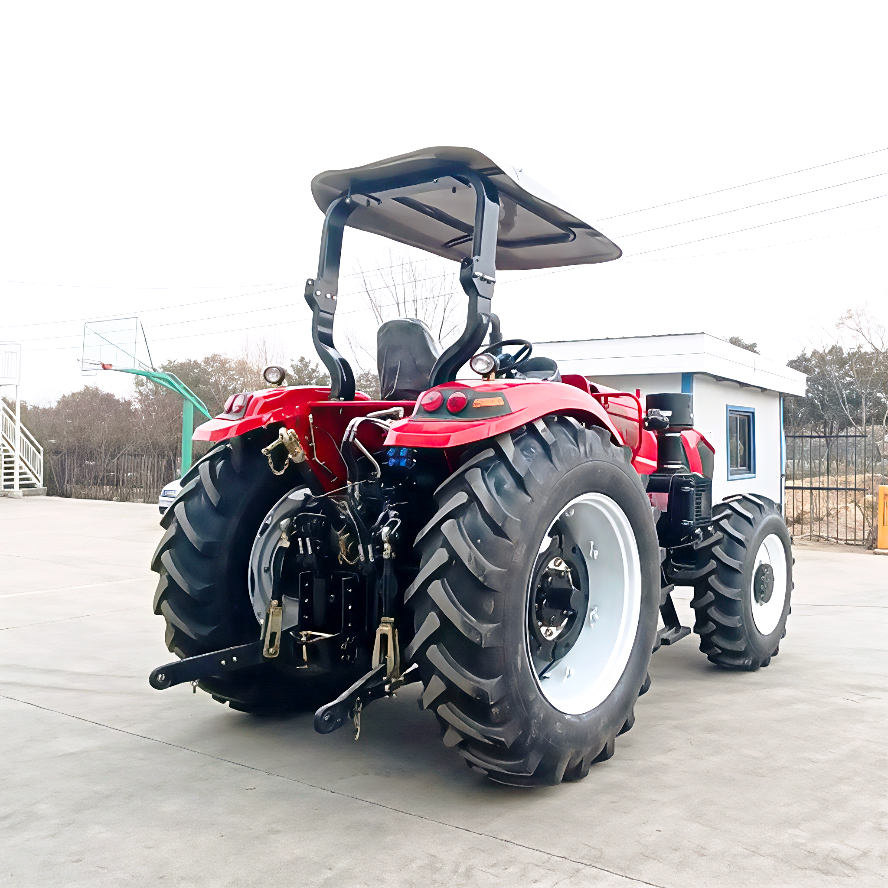

Three-point hitch Category 3
It is a standard for large tractors. With this hitch system, this 150 HP tractor AN1504 can connect wider, heavier, and more powerful agricultural implements, expanding its operating range and directly indicating its large and heavy-duty positioning.
Strong multifunctional scalability
Two or even three sets of hydraulic output valves are available in the 150 HP tractor, meaning it can simultaneously operate multiple hydraulically driven tools, such as planters with hydraulic motors, plows, and straw balers. This allows for multiple uses, a high degree of intelligence, and integration.
Top safety and reliability configuration
Besides outstanding working performance, ANON also cares about the importance of safety and reliability. They are especially significant for a large tractor.
Wet disc brake
The brake pads are sealed in the oil chamber and are not afraid of mud, water, sand, or dust intrusion. They have stable braking performance, extremely long service life, are basically maintenance-free, and have an extremely low failure rate.
Independent hand brake
The parking brake and service brake systems are separated in this 150 HP tractor AN1504, with high safety redundancy and more reliable parking on slopes
Larger tire options
The 18.4-38 rear wheel provides the 150 HP tractor with a large contact area, resulting in a stronger grip and traction, and significantly reduces soil compaction, protecting arable land.
Unbelievable Range Ability
The fuel tank of over 320 liters is an amazing feature in a 150 HP tractor. This means it can work continuously for dozens of hours without refueling, greatly reducing the time for refueling assistance. It is particularly suitable for high-intensity continuous operations over large areas and around the clock.
Designed for high-intensity work
The huge oil capacity of the radiator, gearbox, and rear hydraulic system ensures excellent thermal balance performance and stability of the 150 HP tractor AN1504 under long-term heavy-load operation, effectively extending the service life of the overall 150 HP tractor and reducing the risk of overheating.
Challenges&Solutions
“Time is money. But I also need to consider the fuel cost while asking for high efficiency.”
Analysis: Rising fuel prices and intensive field work must lower the profit. Your need is changing from the simple horsepower to a “smart” power distribution.
Value of 150 HP tractor AN1504:
Powerful traction means that engine power is efficiently converted into forward pulling force, rather than wasted on wheel slippage. The 150 HP tractor offers a wide range of gear options. So, the engine can always run at the most economical RPM for all conditions. Thus, the 150 HP tractor AN1504 can protect your profit by cutting operating costs per acre and increasing job completion speed.
“Can my tractor keep up with the more and more complex demands of modern farming practices?”
Analysis: To save time and protect the soil, you need to use a multi-function combine harvester, but the hydraulic system of traditional tractors is not powerful enough.
Value of 150 HP tractor AN1504:
The 150 HP tractor AN1504 can serve as a multifunctional control center. You can operate advanced, multi-function agricultural equipment simultaneously. The equipment includes precision seeders with integrated fertilizer application. The 150 HP tractor AN1504 can complete multiple tasks in a single pass. This not only improves efficiency but also protects soil structure by reducing trips over time. This means you can easily adopt modern farming practices and stay ahead of the technological curve.
“My fields are of different sizes and are grown with various crops. So will large machinery be too cumbersome for my farm?”
Analysis: Large-scale agricultural fields are planted with small plots and cash crops. It will cause low asset utilization as only one large tractor may not be suitable for all situations.
Value of 150 HP tractor AN1504:
The 150 HP tractor AN1504’s outstanding maneuverability breaks the limitations of traditional high-horsepower tractors. Because of its remarkably small turning radius, this 150 HP tractor can maneuver easily in tight spaces, showing its agility comparable to that of smaller tractors.
Combined with its high ground clearance, the 150 HP tractor AN1504 can deal with heavy fieldwork in large fields. It can also easily access fields with tall crops like corn and sugarcane for mid-season cultivation. You will get a versatile machine capable of handling a wide range of tasks, so that your investment in equipment can be maximized.
“Equipment quality is so important to me because I cannot afford any loss caused by unplanned downtime.”
Analysis: During the crucial agricultural season, equipment failure can lead to significant financial losses. You need a reliable and robust partner.
Value of 150 HP tractor AN1504:
The sealed wet disc brake system can ignore the corrosion caused by mud, water, and dust. It provides consistent braking power and long service life with minimal maintenance. This 150 HP tractor AN1504 aims to provide you with the competitive reliability under the most difficult conditions, ensuring your works go smoothly as expected.
Successful Case
Customer: Manager of a provider of agricultural services
Requirement: Complete more orders from large, local farms during the short growing season, maintain work quality, and finish orders on time.
Application:
Using the subsoiler AN3S-4.0 with the 150 HP tractor AN1504 to loosen the soil to a depth of 40cm, shattering plowpan compaction.
Adjust the rotary tiller ANTGKN-300 depth to 16 cm for crushing soil clods, leveling the ground, and burying crop residues.
Converting the 150 HP tractor’s PTO speed to 540/1000 rpm to drive the rotary tiller.
Result: The loosen depth of soil is required. The furrows are uniform. And after this rotary tillage, the surface of the soil is smooth and finely crusted, breaking.
FAQ
Q: Is there any comparable data to reference showing how much fuel and time costs this 150 HP tractor can save versus a similar-sized 130-horsepower model when put to work doing real jobs?
A: The power can affect fuel mileage, but not just the power; it’s also the efficiency. We have conducted comparisons based on actual customer operational data.
Scenario: Deep tillage (30–35 cm depth) operation.
Comparison: 150 HP tractor AN1504 vs 130 HP tractor.
Results:
The performance of the 150 HP tractor AN1504 can be 15-20% faster with very low tire slip (less than 15%) in order to reach that tillage depth.
In contrast, the 130HP tractor often needs to reduce speed and experiences higher tire slippage (more than 25%) to achieve the same result.
Summary: With a 1000-acre field, the 150 HP tractor AN1504 should save from 8-12% of fuel used and complete the job in a day and a half -two days earlier. This reduces fuel expenditure, as well as precious time and manpower.
Q: In our farmland with deep mud, tractors often operate continuously under high temperatures. What special design does AN1504 have for mud and water protection?
A: ANON has considered such a question and implemented specific enhancements on this 150 HP tractor AN1504:
Cooling System: We use a large parallel-flow composite radiator with an electronic reverse-rotation dust-removal fan. The fan will briefly reverse to blow debris away for cooling when the sensor detects a blockage in the radiator fins.
Sealing and Protection: To prevent mud and water ingress, the key electrical connectors, brakes, and engine air intakes are sealed. The driving system with multiple oil seals makes the 150 HP tractor work well in deep mud.
Thermal Management Strategy: The engine of this 150 HP tractor AN1504 has an intelligent thermal management function. It supports optimization for fan speed and fuel injection under extreme temperatures without the need for human control. So the power output can be consistent and stable even when the temperature is too high.
