ANON Tower Dryer
The grain tower dryer is a continuous and efficient drying equipment suitable for centralized drying and processing of grains. It feeds wet grains from the top through the tower structure and slowly drops them by gravity. Multiple layers of staggered hot air channels and cooling zones are arranged inside the tower to achieve uniform and staged drying and cooling treatment of grains, ensuring drying quality while effectively controlling risks such as bursting and crushing.
1. The drying method of heat exchange and evaporation ensures uniform and sufficient drying.
2. To prevent drying cracks and broken rice, a constant drying speed control is adopted, and a computer controls the precipitation rate and air temperature without the need for manual setting.
3. Prevent grain spoilage and operate the machine at an appropriate temperature.
4. To prevent excessive drying, an automatic, accurate, and safe moisture monitoring device is used, which can automatically shut down the machine.
Convenient construction
ANON tower dryer uses special materials that are thinner with better strength and toughness, so our dryer will be lighter in weight than similar products. Our drying tower is shorter under the same weight, which is more conducive to factory construction. It has a compact structure and occupies a small area. It can be flexibly installed according to the site to meet the drying needs of different regions.
Efficient and rapid drying
The ANON grain tower dryer has a powerful processing capacity, with a one-time grain processing capacity of tens of tons. Compared to traditional natural drying, tower dryers use high-temperature hot air to accelerate water evaporation, greatly reducing drying time from several days or even weeks to several hours to less than a day. It can meet the short-term centralized drying needs of large-scale grain depots. Quickly process newly harvested grains during the harvest season to avoid mold growth caused by squeezing.
Good drying quality
The ANON tower dryer adopts low-temperature drying technology, with the drying temperature controlled at 50-80 degrees, effectively avoiding problems such as grain bursting, discoloration, and nutrient loss caused by high temperature. And we optimize the design of the air duct inside the tower and the grain conveying path to ensure that the hot air penetrates the grain layer evenly, so that each grain is heated and dehumidified uniformly. Each drying process will undergo moisture testing using our specially developed crushing moisture meter. Those that do not meet the standards will be returned to the tower for further drying to ensure even moisture content and consistent quality of the grains after drying, making it easy to store and sell.
Intelligent automation

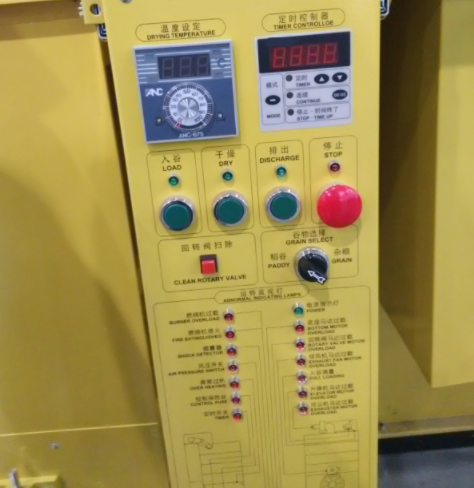

The ANON grain tower dryer has a clear operation panel. The operator only needs to select the grain type, initial moisture content, target moisture content, and other parameters on the control panel, and the equipment can automatically operate to complete the entire drying process. There are also various fault alarms for different situations, which do not require manual monitoring at all times. In case of problems, they can be quickly and accurately located, greatly reducing labor intensity and improving production management efficiency.
Related Products
FAQ
Axial-flow fan grain dryers can do the job. They effectively remove moisture from the grain, but they are more expensive. They are also generally noisy.
Moving grain into and out of the drying system typically requires some cost, either electrical or mechanical, but the cost is generally minimal. A nominal estimate of $0.01 per bushel can be used. The amount of labor required to operate the drying system varies greatly depending on the type of system.
If the harvested grain has a moisture content of 25%, 134 kg of water must be removed to obtain a “dry” ton (1,000 kg) of grain with a moisture content of 15%. A continuous cross-flow dryer would consume 860,000 kilojoules (34 liters of propane) of energy to evaporate this amount of water.
