ANON Sugarcane Cutting Harvester

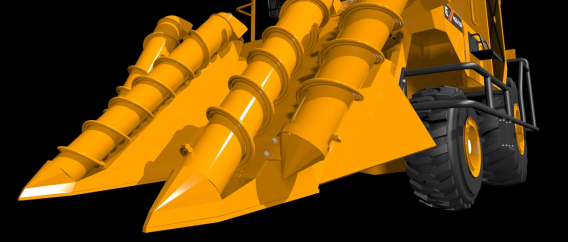

1. The circular cutter uses high-strength alloy blades to quickly and accurately cut sugarcane stalks.

2. The contour cutting technology automatically adjusts the cutting height to adapt to the harvesting of flat, sloping, and lodged sugarcane.

3. Equipped with rubber spiral rollers, the conveying efficiency is increased by 40%, reducing the risk of sugarcane blockage.

4. The rubber leaf stripping roller and airflow auxiliary device are used, the leaf stripping rate is more than 90%, and the residual leaf rate is less than 5%.

5. The high-horsepower engine, with a power range of 120-160 horsepower, meets the needs of high-load operations.

6. Hydraulic stepless speed change adapts to different harvesting speeds and terrain conditions.

When using a sugarcane cutting harvester, you need to pay attention to the following points: Before operation, you need to carefully check the sharpness of the cutter, the tension of the drive belt and the operating status of the hydraulic system to ensure that the equipment is in good working condition; according to the height of the sugarcane plants and the conditions of the field in advance, reasonably adjust the cutting length and cutting height to ensure uniform cutting and low loss; during the operation, you should try to maintain a stable and uniform speed to avoid jamming, missing sugarcane or uneven cutting due to unstable speed; after each day’s operation, you need to clean up the remaining sugarcane leaves and mud in time, check and lubricate each transmission part to extend the service life of the machinery and reduce the occurrence of failures.

How to maintain a sugarcane cutting harvester? You need to regularly remove dust and dirt from the surface of the equipment, avoid directly washing electronic equipment with water, check and lubricate bearings, chains, and other parts to ensure smooth operation, and replace worn safety clutch springs, V-belts, etc.
After the sugarcane harvest season is over, the sugarcane harvester is idle, and you also need to do some maintenance on the machine to facilitate normal use next time, such as
Cleaning and rust prevention: clean the equipment and remove debris, and apply anti-rust oil on metal parts.
Tensioning device: loosen the transmission belt, chain, etc., to avoid long-term fatigue failure.
Engine maintenance: start the engine regularly to keep the internal lubrication sufficient.
Tire protection: support the harvester with auxiliary materials to prevent the tire from long-term pressure deformation.
