Disc Harrow

Introduction

The ANON disc harrow series comes in light, medium, and heavy types, suitable for various work intensities and meeting various needs from shallow to deep tillage. Whether it’s loosening soil in an orchard, ordinary land preparation, or dealing with plots with a lot of straw, you can find suitable models that balance power, durability, and cost, helping you spend money on the cutting edge and improve efficiency.

1. ANON offers three types of disc harrows: spherical disc, conical disc, and notched blade disc. You can flexibly choose combinations based on the actual soil conditions and cultivation goals to achieve better operational results and cost control. Spherical discs are commonly used for cutting roots and breaking topsoil through rolling and slight soil turning, suitable for most situations. The inclined edge of the conical disc enhances its ability to penetrate and break soil, making it suitable for heavy soil or situations requiring deep plowing. The notch blade disc has a cut on the outer edge, with stronger cutting and tearing ability, suitable for handling straw cover, hard compacted soil, or land reclamation operations. The diameter and quantity of discs can be adjusted according to your different needs. The disc rake is equipped with a hydraulic system that can automatically adjust the working speed and strength, greatly improving work efficiency.

2. To accommodate varying soil conditions and operational standards, we offer multiple harrow configuration options, ensuring thorough and efficient cultivation without gaps.

Single-row or dual-row opposed disc harrows feature a classic “V” shape arrangement. The single-row opposed structure is simple with balanced traction, ideal for routine operations on small to medium-sized plots. The dual-row configuration delivers equivalent to two passes of soil fragmentation, achieving superior results and a flatter surface—the ideal choice for enhanced land preparation quality. This dual-row setup can also incorporate staggered arrangements to effectively prevent missed areas. The offset disc harrow tilts entirely toward the tractor side, thoroughly eliminating tire ruts and achieving ground leveling. It is particularly suited for precision work in orchards, woodlands, and field corners.

Additionally equipped with a folding disc harrow, which automatically retracts the wide harrow assembly, significantly reducing transport width and complying with road regulations. This design ensures safer and more convenient cross-field transport for large harrows, particularly suited for cross-regional operations and large-scale farms.

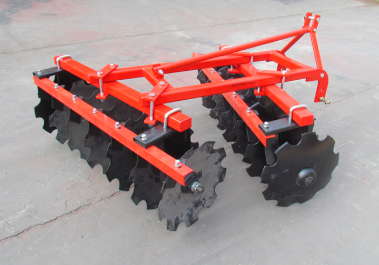

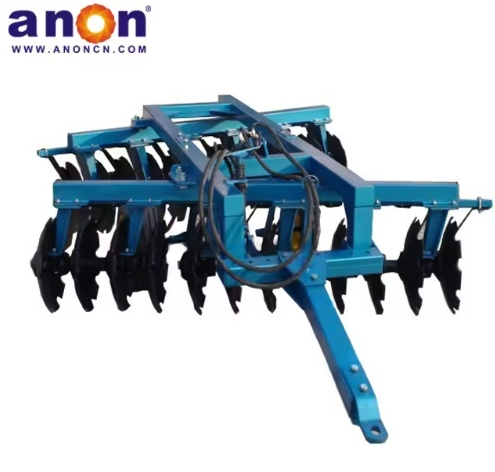

3. According to the connection method with the tractor, ANON disc harrows are divided into suspended and towed types. The suspended disc harrow is connected quickly, has a compact structure, and is flexible to move with three connection points behind the tractor. It has a small turning radius and is suitable for small and medium-sized plots, hilly areas, and operations that require frequent relocation. The towed disc harrow comes with its own wheels, making it structurally more stable and capable of fully exerting its traction force. It is suitable for large-scale, heavy-duty deep harrowing operations with high-powered tractors, providing better depth and stability.

Features

1. Strong soil breaking ability

The body of the disc harrow is equipped with multiple sets of disc blades. During operation, the blades roll into the soil and can cut and break the large soil blocks and roots after plowing. At the same time, it mixes with organic matter such as surface straw and weeds, making the soil particles evenly and finely divided, forming a loose and breathable seedbed. You can adjust the rake angle and operating depth to meet the sowing needs of different crops, such as corn and soybeans, which require fine seeding beds. You can increase the rake angle and deepen the operating depth. Wheat sowing requires shallow harrowing to maintain moisture, which can reduce the angle of shallow tillage.

2. Multi-purpose machine

The round disc rake has strong retesting ability and can simultaneously complete multiple processes, such as cutting root stubble, crushing soil blocks, flipping mixed soil, and leveling the ground surface. Cutting off surface crop roots and mixing them into the soil surface during homework can accelerate straw decomposition and increase soil organic matter content. It can greatly reduce the number of field operations, save fuel and time costs, and quickly achieve land preparation work. After plowing, the surface smoothness is high, which can reduce water evaporation and play a role in entropy preservation and drought resistance, especially suitable for farmland preparation in arid and semi-arid areas.

3. Good terrain adaptability

The overall structure of the ANON disc rake is sturdy and durable, and the rake blades are made of wear-resistant steel, which can cope with various land types such as dry fields, wasteland, and shallow cultivated paddy fields; The flexible suspension system can automatically adjust according to terrain undulations, and can ensure even raking on hilly slopes and small irregular fields, avoiding missed raking or local deep plowing. The traction type model comes with a regulating mechanism that can adjust the transportation and working states. In addition, heavy-duty disc harrows can be used for land reclamation and straw returning, while light-duty disc harrows are suitable for fine soil preparation before sowing, meeting the needs of different soil preparation stages.

4. Easy operation and maintenance

The ANON disc harrow has strong digging ability, simple operation, and high horsepower. After being quickly connected to the tractor through three-point suspension, simply adjust the rake angle and depth limit wheel height to start the operation, without the need for complex debugging; The hydraulic system provides greater flexibility for the disc harrow and has multiple modes, making it easy to navigate in both simple and difficult terrains, so you don’t have to worry about missing or incorrectly plowing. Daily maintenance only requires cleaning the soil and weeds between the rake blades, regularly checking the bolt fastening and blade wear, and replacing a single rake blade when it is severely worn. There is no need for a major overhaul of the entire machine, reducing maintenance costs in the later stages. You can choose the circular disc rake series with good bearing sealing and low wear. The bearing adopts an RSP full package bearing, specially designed for heavy loads and harsh working conditions of agricultural machinery, with sealing protection, pollution prevention, and strong bearing capacity.

5. Creating high-quality seed beds

The ANON disc harrow can lay the foundation for a high crop yield. Fine and uniform soil can allow seeds to fully contact the soil, improve germination rate, and seedling uniformity. Compared with extensive land preparation, crop emergence rate can be increased by 10% -15%, and the root system development of seedlings is more robust, laying the foundation for later yield increase. At the same time, the soil fertility is improved after mixing straw, which can reduce the use of chemical fertilizers and lower planting costs.

6. High durability

ANON disc harrow has a long service life, and the harrow blades are made of 65Mn spring steel or wear-resistant alloy material, which is impact-resistant and wear-resistant. Under normal use, it can operate continuously for 3-5 years without replacement. The fuselage frame is welded with thickened steel, which can withstand the impact of high-intensity operations and is suitable for long-term use in harsh agricultural environments, with outstanding cost-effectiveness.

Contact Us

If you are interested in our ANON disc rake or have any questions, please feel free to consult us. Our professional team will provide you with one-on-one, exclusive advice.

FAQ

1. What is the difference between a power harrow and a disc harrow?

It is very important to choose a harrow that is suitable for your operation needs, and the main difference between a power harrow and a disk harrow is the function. Power harrows are used to improve soil structure, and disk harrows are used to break and mix soil.

2. How does a disc harrow work?

When it starts to work, under the action of tractor traction and soil reaction force, each harrow of　the harrow group begins to roll along with the shaft, and the blade edge of the harrow cuts into the soil under the action of the disc harrow itself, and has a certain effect of turning and covering the soil after cutting.

3. What is an offset disc harrow?

The offset type is that the disc group is offset to one side relative to the traction point, which is convenient for working near the field edge or obstacles. The offset type can reach more than three meters, and the tree crown that the tractor cannot enter can be tilled using the offset disc harrow.
