Description
Burning Furnace: Put the fuels, such as rice hull, straw, and anthracite into the furnace to burn, and then to generate heat. The smoke gets into the heat exchanger and discharges outside after many cycles.
At the same time, the cold air is heated up outside through the heat exchanger and then discharged out of the dryer.
It can increase thermal efficiency, save energy, and reduce costs greatly.

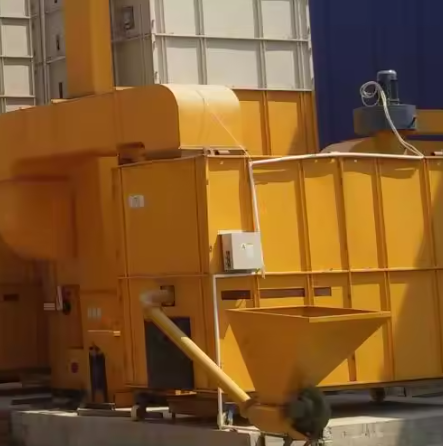

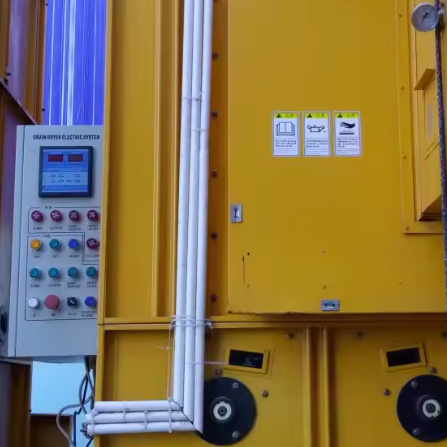

Put the grain in the dryer per batch, then the grain will be circulated orderly by the interaction of electric parts and structural parts. The hot air from the husk burner gets into the drying layer to pass through and heat the grain under the action of a single electric fan. The air flows draw the moisture out of the grain, then the exhaust gas discharges out of the machine with the suction of the exhaust fan. When the moisture reaches the preset data, the drying process is over and then the machines stop working. This machine with control system to control the temperature inside the oven and automatically test the moisture of grain. Normally it takes 8-10 hours to finish one batch of grain. The grain moisture content should be from 12% to 13%, then it will be safe for storage.
Technical Parameters
