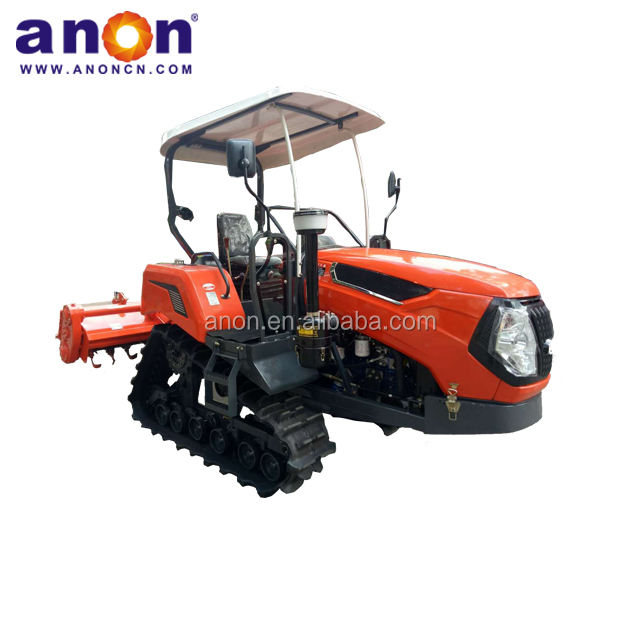

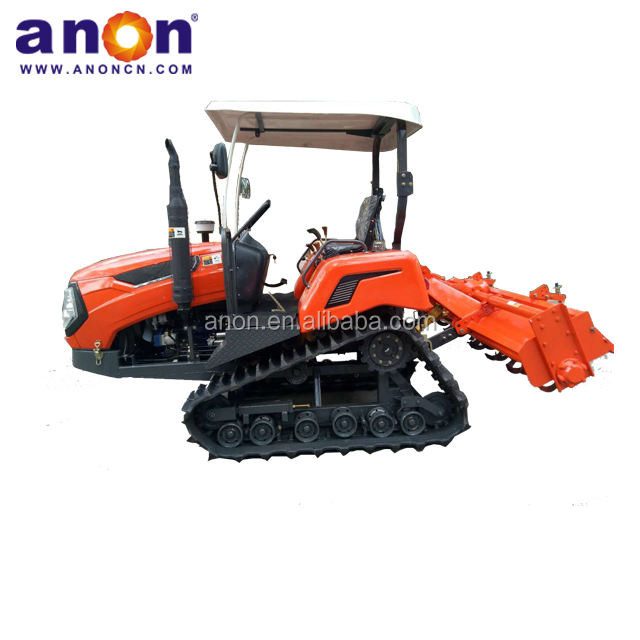

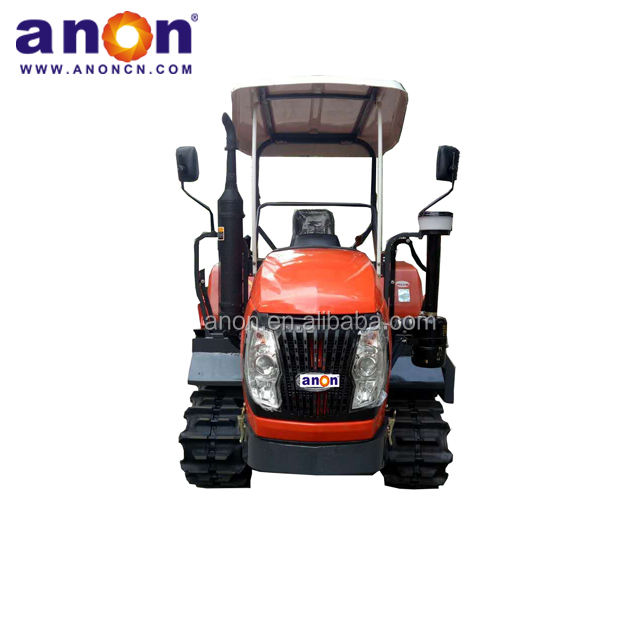

For exceptional performance in the most demanding conditions, the ANON Compact Crawler Tractor AN-702 combines power, agility, and versatility. Whether you’re working in wet paddies, delicate orchards, or on hilly terrain, its advanced design ensures maximum productivity, operator comfort, and cost-efficiency.

Specification





Key Features & Benefits

Eco-Conscious Power

Feature: Equipped with a powerful and fuel-efficient YD Series, CN III emission standard engine.

Benefit: Delivers reliable 55kW output while reducing fuel consumption and environmental impact, meeting modern emission regulations.



Superior Maneuverability & Control

Feature: Hydrostatic Transmission (HST) main + gear meshing auxiliary transmission with 3×3 Forward/Reverse gears.

Benefit: Provides seamless, shock-free speed changes and precise control, allowing ideal power-to-speed matching for any task. It then drastically reduces your fatigue during operation.



Exceptional Ground Clearance for Wet Fields

Feature: High-set drive wheels in a triangular configuration and a massive 440mm minimum ground clearance.

Benefit: Prevents mud and debris buildup, ensuring unmatched traction and passage in rice paddies, soft soil, and muddy conditions without compaction.



Versatile Attachment Ready

Feature: Category 3-point rear hitch and independent PTO (720/540 rpm).

Benefit: Connect a wide range of implements for planting, tilling, and more. An optional dozer blade attachment expands its functionality to light grading and earth-moving projects.



All-Terrain Rubber Track System

Feature: 400mm wide rubber tracks (400x90x51).

Benefit: Offers excellent flotation, minimizes ground pressure to protect both the soil and finished surfaces, and provides a stable, comfortable ride with less vibration than wheeled tractors.



Robust and Durable Construction

Feature: Reinforced welded mainframe and chassis.

Benefit: Guarantees high structural integrity and longevity, built to withstand rigorous use in light-duty applications.









Applications&Scenarios

How will these features benefit you in detailed scenarios?

Paddy Fields& wet and muddy ground

The ultra-high ground clearance is a key feature of paddy field tractors. AN-702 has 440mm ground clearance, which is higher than that of ordinary wheeled tractors (typically <400mm). This ensures that the chassis will not bottom out or be blocked by mud or weeds, even when operating in deep mud, thus guaranteeing continuous maneuverability and operational efficiency.

The 400mm-wide rubber tracks and the overall machine weight of 1880kg collectively achieve extremely low ground pressure. The pressure is distributed over a large area, allowing the machine to “float” on soft, wet ground, effectively preventing sinking, protecting the field embankments, and avoiding deep ruts that could damage the flatness of the rice field.

The 1200mm track width and 1505mm ground contact length lead to excellent longitudinal and lateral stability. They can prevent rollovers or skidding in muddy environments, thus ensuring your safety.

Orchards&Greenhouses

Its compact size, with a width of only 1.7 meters, allows this crawler tractor to easily navigate between rows of low-growing fruit trees or through narrow greenhouse spaces without bumping into branches or greenhouse walls. The advantage makes it ideal for precision agricultural management.

The turning radius of 2500mm is the key advantage in terms of maneuverability. It supports this crawler tractor to easily turn around or change direction in very narrow spaces, significantly reducing the need for repeated maneuvering at the field edges. This improves the operational efficiency, making it particularly suitable for your work in confined spaces.

Hilly&Sloped Terrain

The max gradability of 35° is an outstanding feature, demonstrating the crawler tractor’s capability to handle the majority of slopes in hilly and mountainous terrain, thus expanding the range of agricultural operations, including plowing and transportation.

The tracked drive system, compared to a wheeled system, offers unparalleled traction. It grips the ground firmly, effectively preventing skidding and side-slipping, resulting in far greater safety than wheeled tractors.

HST Continuously Variable Transmission is crucial for operations on slopes. The system, with extremely smooth and precise speed control, can eliminate the shocks and jerks caused by shifting gears on inclines and prevent the risk of stalling or loss of control. Thus, you can have safer and more reliable operation when starting and stopping on slopes.



Multi-Purpose Farming

The dual-speed PTO, featuring 540/720 rpm, is a standard international feature. With this standard, most mainstream agricultural implements worldwide, such as rotary tillers, plows, harrows, seeders, mowers, sprayers, etc., can be well connected to this crawler tractor, enabling truly multi-functional use.

The three-point hitch system is essential for connecting and operating these agricultural implements, ensuring their lifting, lowering, and depth control.

The power output of 55kW provides ample power reserves for all these tasks. So the tractor can work efficiently even under heavy loads, such as deep tilling, without any power limitations.



Light Duty Construction&Transport

The optional bulldozing attachment directly expands the crawler tractor’s application range, from purely agricultural areas into light-duty construction work, such as digging trenches in orchards, leveling ground, moving fertilizer piles, and snow removal, thus creating additional value for you.

The rubber tracks are essential for their use in construction and transportation. Unlike steel tracks, they do not damage concrete or asphalt surfaces, allowing them to legally travel on roads for short distances or to move between job sites without fear of being prohibited or fined.



Challenges&Solutions

• Limited functionality and a low return on investment.

“I need to purchase several specialized types of machines to handle different tasks like plowing, transportation, bulldozing, etc. But the cost will be too high, and storing them is also a hassle.”

Solution

 Equipped with a standard three-point hitch and a dual-speed PTO (540/720 rpm), this crawler tractor can easily connect to various agricultural implements such as rotary tillers, plows, harrows, and mowers. An optional bulldozer blade transforms it into a light-duty bulldozer.

Value to the customer: With a single investment, you can replace multiple machines, performing everything from planting and field maintenance to land leveling and material transport, significantly improving equipment utilization and return on investment.

• Poor Maneuverability in Paddy Fields.

“The wheeled tractor tends to get stuck and skid in wet paddy fields, resulting in low efficiency and deep ruts that damage the soil structure.”

Solution

 440mm ultra-high ground clearance + 400mm wide rubber tracks + only 1880kg operating weight.

Customer benefits: Designed specifically for paddy fields. The ultra-high chassis prevents mud accumulation, while the wide tracks distribute the weight, resulting in extremely low ground pressure, ensuring the machine can operate freely in wet, muddy paddy fields without sinking, effectively protecting soil structure and preventing soil compaction.



• Unsuitability of Large Equipment for Use in Narrow Spaces

“My orchard has very narrow rows, so large tractors can’t access it, and smaller equipment lacks sufficient power; turning around at the end of the rows is also very difficult.”

Solution

With a width of only 1700mm and a remarkably small turning radius of 2500mm.

Customer benefits: This allows easy maneuvering through narrow rows of fruit trees and greenhouse aisles. Its superior maneuverability enables efficient operation in confined spaces, reducing the need for turning around, while the powerful 55kW engine ensures uncompromising performance.

• High Risk of Slope Operation

“When working on hilly or sloping terrain, I’m always worried about the tractor tipping over. The safety risk is too high.”

Solution

A low-center-of-gravity tracked design provides superior traction + a climbing ability of up to 35° + hydrostatic transmission (HST) for smooth and precise speed control.

Customer benefits: Perform work on slopes with confidence. The tracked chassis provides tank-like stability, significantly reducing the risk of rollover. The HST transmission eliminates the need for manual shifting, allowing smooth starts and stops on slopes, ensuring safer operation so you can focus on the task at hand, not safety concerns.

• Complex and Tiring Operation

“After operating a tractor all day, my whole body aches.  The traditional manual gearbox is cumbersome to use and inefficient.”

Solution

HST continuously variable transmission (primary) + single-lever control + optimized suspension system.

Benefits for customers: Work becomes effortless. No need to press the clutch or shift gears frequently; forward, reverse, and speed can be controlled with one hand. It significantly reduces operational effort and fatigue for you. The superior suspension system filters out bumps, ensuring your comfortable operation even during long work hours.

• Increasing Maintenance Cost

“With rising fuel prices, older machines consume more fuel and require more frequent repairs, and these costs are reducing my profits.”

Solution

An engine that meets the CN III emission standards + rubber tracks.

Benefits for customers: Saves you money. The advanced engine technology optimizes combustion for higher fuel efficiency, directly reducing your fuel costs. Rubber tracks eliminate the need for frequent replacement of idler wheels and track plates, resulting in lower maintenance costs and less damage to the road surface, while also facilitating easy transportation.





FAQ



Q: Rubber tracks may not seem as durable as steel tracks, so what about their replacement cost and lifespan?

A: It is a common misunderstanding. In fact, rubber tracks are high-performance components designed for specific operating conditions. Their value lies in their versatility and ability to protect the ground surface.

Our rubber tracks are made with high-strength steel cores and wear-resistant rubber compounds. They are specifically designed for agricultural and light industrial applications. With proper use, avoiding high-speed operation on extremely rough gravel surfaces or areas with sharp debris, they offer a very long service life.

The cost of replacing a single track is transparent. And the replacement process is simpler and faster than replacing the entire track assembly of a steel track. Thus reducing downtime.

Q: Are HST continuously variable transmissions reliable? Compared to traditional gearboxes, is there a significant loss of power?

A: HST technology is now highly mature and reliable, and is a hallmark of modern high-performance compact devices.

The HST system is a closed system, which prevents external contamination. The design life of its main components (pump and motor) is synchronized with that of the machine itself, resulting in very high reliability and lower maintenance requirements compared to traditional clutches that require frequent operation.

While it’s true that HSTs have a slightly lower maximum power transmission efficiency than gearboxes (around 5-10% less), the small loss in efficiency is offset by significant gains in productivity.

Taking the infinite speed control as an example, the engine always operates at its optimal RPM, when vehicle speed can be infinitely adjusted. This helps to achieve optimal power matching. In most real-world operating conditions, it actually leads to better fuel economy.
