Product Overview
The ANON 5-row corn harvester is designed for efficient corn harvesting, threshing, and direct grain collection. Powered by a 175 HP Dongfanghong or Quanchai National IV common-rail engine, it combines strong power with convenient operation. The machine offers three header row-spacing options—520 mm, 600 mm, and 630 mm—and features a hydrostatic continuously variable transmission for smooth speed adjustment. Its widened conveying system, three-fan cleaning arrangement, and enlarged grain tank help improve harvesting efficiency and grain quality.
Key Features and Benefits
1. Powerful Engine and Smooth Transmission
Choose a 175 HP Dongfanghong or Quanchai engine with a high-pressure common-rail fuel system and oil-water separation filter. The mechanical three-speed transmission combined with hydrostatic speed control provides convenient operation and flexible speed adjustment.

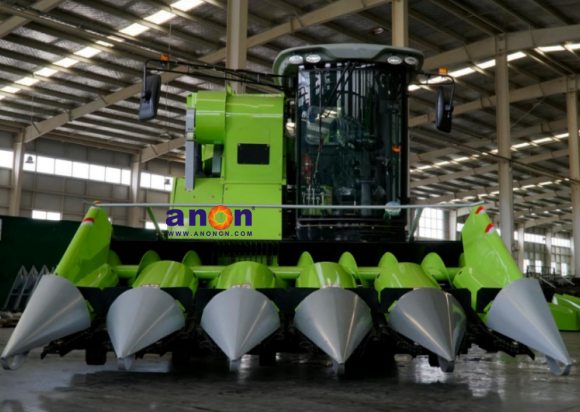

2. Five-Row Header with Multiple Row-Spacing Options
Available with 520 mm, 600 mm, or 630 mm row-spacing configurations, the header accommodates different corn planting layouts. Six-sided composite serrated stalk-pulling plates and stalk-pulling rollers extended by 100 mm improve crop feeding, reduce blockages, and help minimize grain loss.

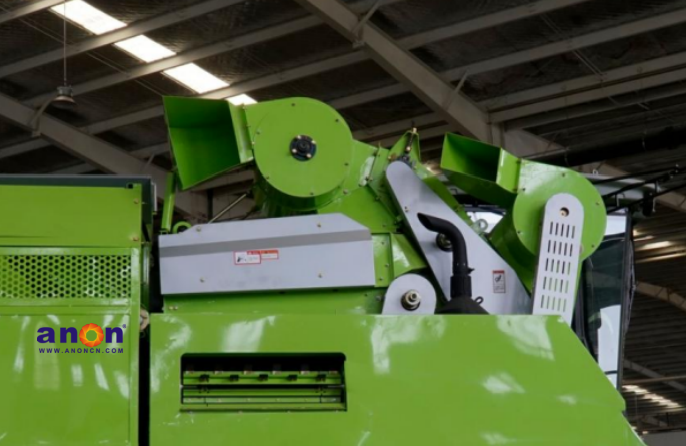

3. Widened Elevator and Three-Fan Cleaning System
The widened elevator and three-fan arrangement improve stalk conveying and debris removal. A safety clutch helps protect components against overload, while the chain-type husk discharge system supports continuous residue removal and helps reduce grain loss.
4. Clean Grain Recovery and Efficient Unloading

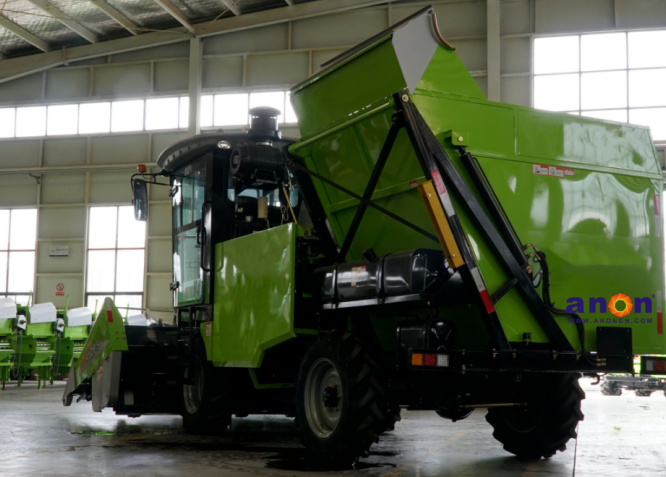

The optimized grain fan features adjustable airflow to improve cleaning performance. A hydraulic-motor-driven auger supports convenient grain discharge and bagging. The enlarged 2.8 m³ grain tank reduces unloading frequency, while dual hydraulic cylinders provide an unloading height of up to 2.3 m.
5. Better Visibility and Operator Comfort

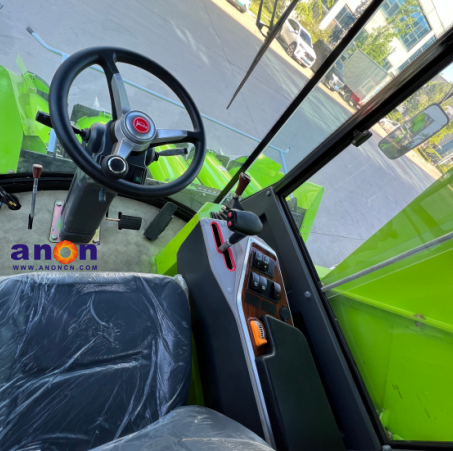

Standard reversing and grain-tank monitoring cameras help operators check rear visibility and grain loading. Wide tires, including 11.2-20 drive tires and 9.5-20 steering tires, support field mobility. The enclosed cab provides a wide field of view and a more comfortable working environment.
Technical Specifications
| Item | Specification |
|---|---|
| Machine type | Self-propelled corn harvester |
| Harvesting rows | 5 rows |
| Engine brands | Dongfanghong / Quanchai |
| Engine power | 175 HP |
| Emission standard | China National IV |
| Fuel system | High-pressure common rail |
| Transmission | Mechanical 3-speed + hydrostatic CVT |
| Header row spacing options | 520 / 600 / 630 mm |
| Grain tank capacity | 2.8 m³ |
| Maximum unloading height | 2.3 m |
| Drive tires | 11.2-20 |
| Steering tires | 9.5-20 |
| Standard equipment | Enclosed cab, reversing camera, grain-tank monitoring camera, three-fan cleaning system |
