Product Overview
The ANON 4-row wheeled corn combine harvester is designed for efficient corn harvesting, threshing, and direct grain collection. Powered by a 150 HP Quanchai National IV common-rail engine, it delivers reliable power for demanding harvesting operations. The machine offers three header row-spacing options—520 mm, 600 mm, and 630 mm—making it adaptable to different corn planting layouts. Its multi-fan cleaning system, enlarged grain tank, and wide tires help improve harvesting efficiency and reduce grain loss.
Key Features and Benefits
1. Powerful Engine and Reliable Performance
The 150 HP Quanchai engine features a high-pressure common-rail fuel system and an oil-water separation filter to help protect the engine and support reliable operation.
2. Three Adjustable Row-Spacing Options

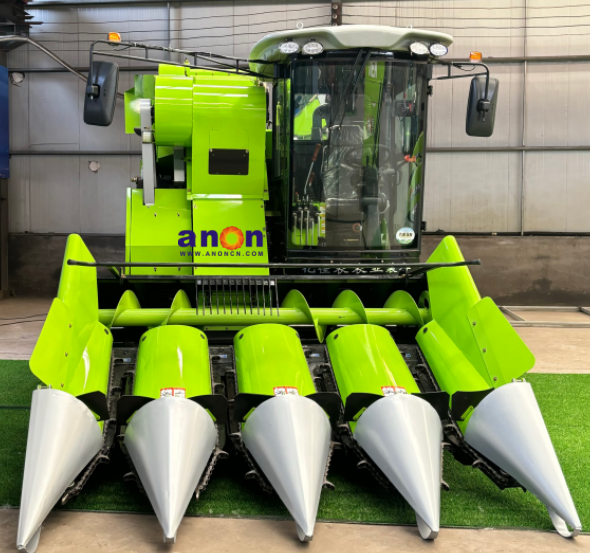

Choose from 520 mm, 600 mm, or 630 mm header configurations to match your planting layout. The six-sided composite serrated stalk-pulling plates and extended 100 mm stalk-pulling rollers improve feeding, reduce blockages, and help minimize kernel loss.
3. Efficient Conveying and Multi-Stage Cleaning

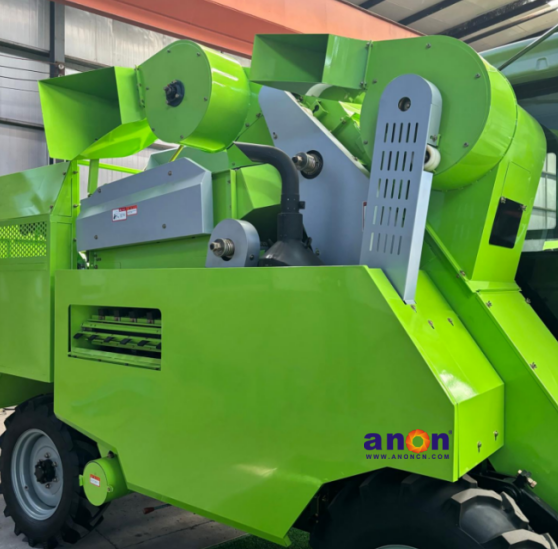

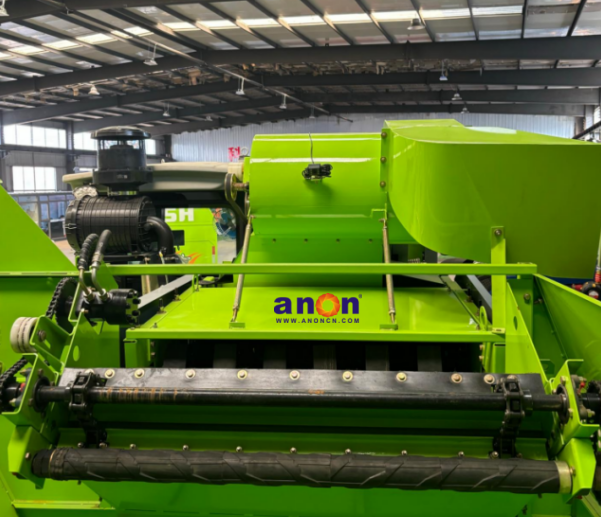

A widened elevator and three-fan cleaning arrangement improve stalk conveying and debris removal. The safety clutch helps protect components from overload, while the chain-type husk discharge system promotes smoother residue removal and more uniform grain collection.
4. Clean Grain Collection and Convenient Unloading

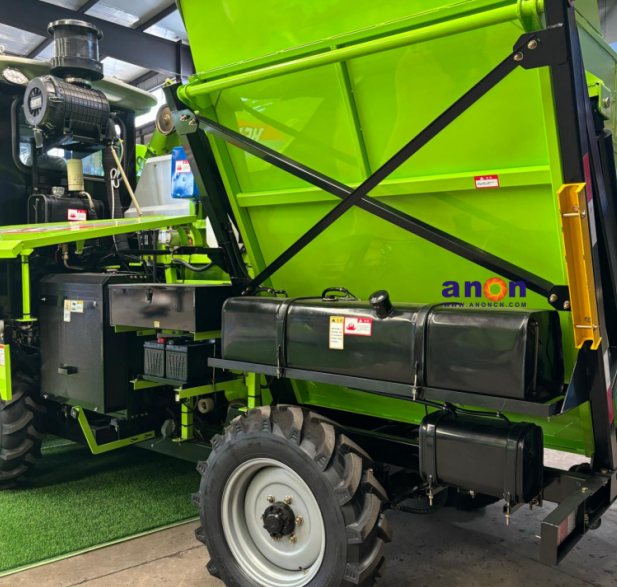

The adjustable-airflow grain fan helps balance cleaning performance and grain recovery. An enlarged 2.8 m³ grain tank reduces unloading frequency, while dual hydraulic cylinders provide an unloading height of up to 2.3 m. A hydraulic-motor-driven auger supports convenient grain discharge and bagging.
5. Improved Visibility and Field Mobility
Standard reversing and grain-tank monitoring cameras help operators check rear visibility and tank loading conditions. Wide tires—11.2-20 drive tires and 9.5-20 steering tires—support field mobility, while the enclosed cab offers a wide field of view and a more comfortable working environment.
Technical Specifications
| Item | Specification |
|---|---|
| Machine type | Self-propelled wheeled corn combine harvester |
| Harvesting rows | 4 rows |
| Engine | Quanchai, 150 HP |
| Emission standard | National IV (China) |
| Fuel system | High-pressure common rail |
| Header row spacing options | 520 / 600 / 630 mm |
| Grain tank capacity | 2.8 m³ |
| Maximum unloading height | 2.3 m |
| Drive tires | 11.2-20 |
| Steering tires | 9.5-20 |
| Standard equipment | Enclosed cab, reversing camera, grain-tank monitoring camera, multi-fan cleaning system |
Request a Quote from ANON
Looking for a 4-row wheeled corn combine harvester for your agricultural business? Contact ANON to request a quotation, confirm the correct header row spacing for your fields, and obtain detailed information about field capacity, fuel consumption, dimensions, and shipping options.
