Product Overview

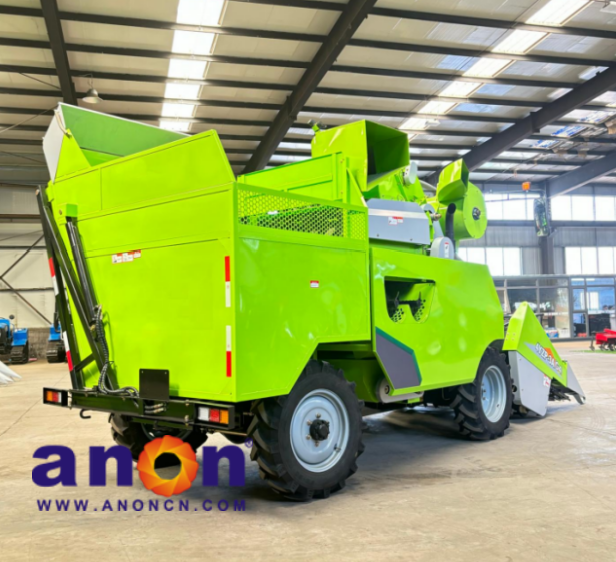

The ANON 3-row self-propelled corn harvester is designed for farmers and agricultural contractors who need efficient corn harvesting and direct grain collection. It combines corn picking, threshing, and grain collection in one machine, reducing the need for separate processing equipment. With an adjustable 600 mm row-spacing header, four-wheel drive, and a 2.5 m³ grain tank, it is suitable for corn harvesting in plains, hilly areas, and mountainous farmland.
Key Features and Benefits
1. Adjustable 3-Row Corn Header

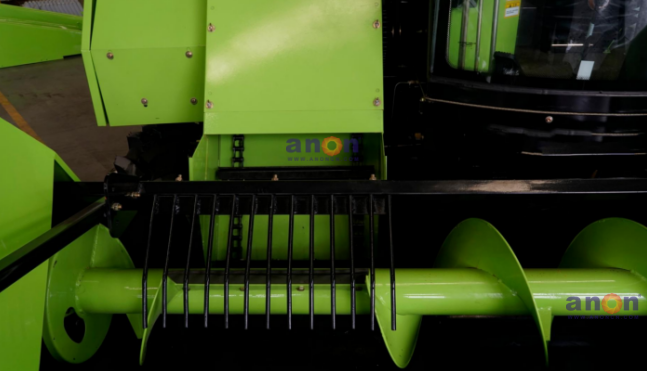

The header features adjustable front ends on both sides to accommodate different planting conditions. Its six-sided composite serrated plates and extended stalk-pulling rollers improve stalk feeding, reduce header blockages, and help minimize grain loss. The machine can also harvest corn without exact row alignment under suitable field conditions.
2. Efficient Grain Collection and Unloading
The machine threshes corn and collects kernels directly. A standard grain-cleaning fan helps remove impurities, while the auger unloading system simplifies grain discharge. The enlarged 2.5 m³ grain tank reduces unloading frequency, and dual hydraulic cylinders enable unloading at heights of up to 2.3 m.
3. Four-Wheel Drive for Hilly Terrain
The detachable four-wheel-drive system provides traction flexibility for different field conditions. A low center of gravity improves stability, while the high-strength 16Mn steel chassis offers improved strength and resistance to rough-field impacts. The machine is designed to operate on slopes of up to 30°, subject to actual terrain and operating conditions.
4. Reduced Maintenance and Operator Comfort

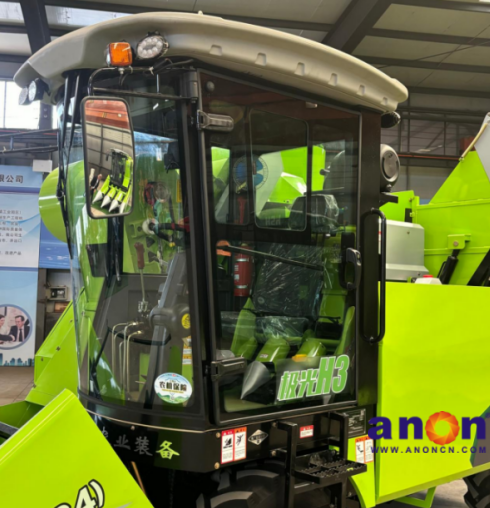

The automatic chain lubrication system reduces routine maintenance work. A standard enclosed cab provides a wide field of view, while the adjustable luxury suspension seat improves comfort during extended harvesting operations.
Technical Specifications
| Item | Specification |
|---|---|
| Machine type | Self-propelled corn harvester |
| Harvesting rows | 3 rows |
| Header row spacing | 600 mm |
| Grain tank capacity | 2.5 m³ |
| Maximum unloading height | 2.3 m |
| Drive system | Detachable four-wheel drive |
| Overall dimensions (L × W × H) | 6,220 × 2,260 × 2,930 mm |
| Machine weight | 4,150 kg |
| Chassis material | High-strength 16Mn steel |
| Standard equipment | Enclosed cab, adjustable suspension seat, grain-cleaning fan, automatic chain lubrication |
Get a Quote for Your Corn Harvesting Needs
Looking for a 3-row corn harvester for your farm or agricultural business? Contact ANON to request a quotation and confirm compatibility with your planting conditions, terrain, and harvesting requirements. Ask our team for detailed engine specifications, field capacity, and shipping information before placing your order.
