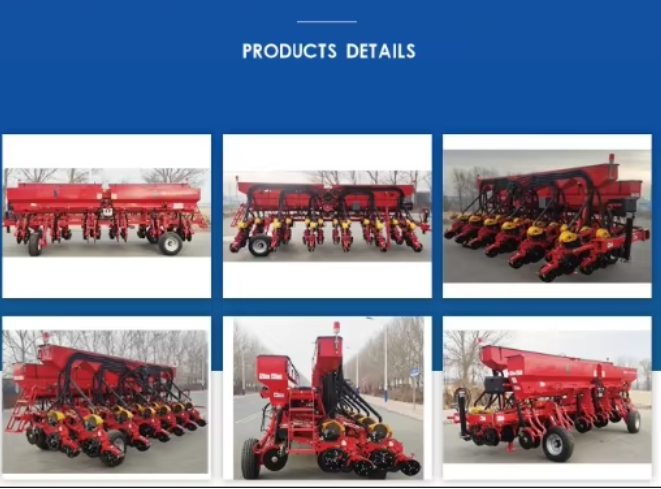

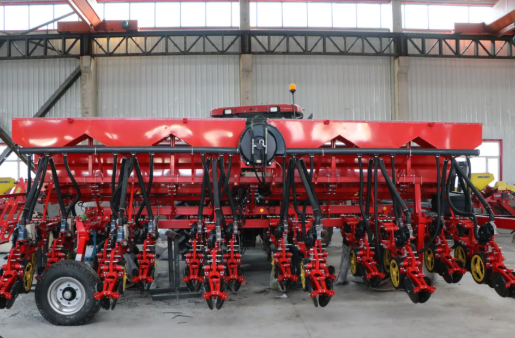

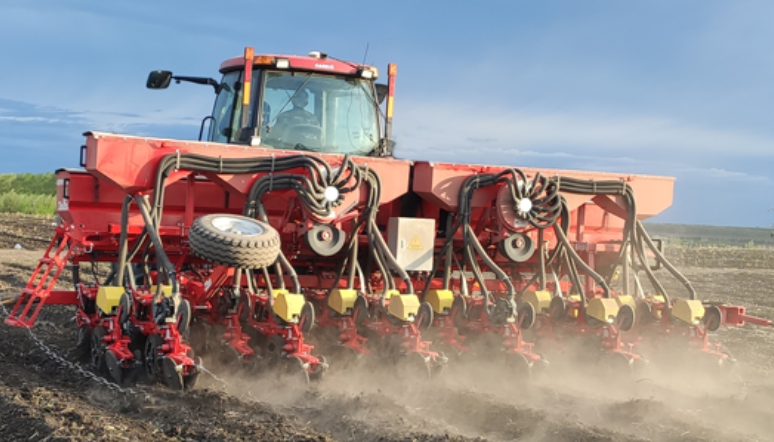

The AN2BQD-18 Electric Pneumatic Precision Seeder
AN2BQD-18 Electric-Drive Pneumatic Precision Seeder is a large-scale, multifunctional, intelligent agricultural seeding machine designed for high-precision row or hill planting of crops such as corn, soybean, sorghum, and cotton. It features an electric drive combined with a pneumatic negative-pressure seed metering system, integrating intelligent control with high-efficiency operation to achieve precise seeding and simultaneous fertilization. This machine offers high seeding accuracy, dual-function fertilization, smart operation, strong adaptability, and exceptional efficiency, making it ideal for large-scale farming and modern agricultural operations.
Features
-
Independently developed intelligent seeding and fertilization control system: Equipped with a central rod-controlled suspension status sensor to effectively prevent missed seeding; wind pressure safety settings ensure seeding only begins when required pressure is reached.
-
Electric-drive pneumatic seed delivery and electro-hydraulic fertilization system: No complex chain-drive system is required, ensuring high operational accuracy with no concerns about ground wheel slippage.
-
Real-time monitoring of work quality and parameters: A 10-inch LCD screen and 8 surveillance cameras provide full-process monitoring of the seeding operation.
-
18 seeding units with 2-row and 3-row configurations: Easy switching between crops such as corn and soybeans for flexible operation.
-
Separated seed box and main frame design: Maintains consistent ground pressure from the frame, allowing simultaneous operation across six 1.1-meter ridges in one pass; maximum working speed reaches 12 km/h for high efficiency.
-
One-touch seed and fertilizer unloading: Quick and convenient; seed and fertilizer boxes are equipped with electronic sensors that issue early warnings for seed or fertilizer shortages.
-
Radar-equipped safety switch: Ensures the safety of personnel during operation.
| Model | AN2BQD-18 |
| Dimensions(mm) | 3400*7200*2050 |
| Total mass(kg) | 4160 |
| Fertilizer opener type | double disc |
| Number of fertilizer openers | 12 |
| Operating speed range km/h | 8-12 |
| Working width cm | 660 |
